NEO PA/VA EN 54-16
The EN 54-16 Public Address and Voice Alarm System LDA NEO is a compact, all-in-one, cost-effective unit.
Its plug-and-play philosophy reduces time and costs as it makes very simple the installation, maintenance, and operation of the system.
NEO represents cutting-edge technology in EN 54 PA/VA systems and uses innovations that ensure its viability in the present and in the future.
Currently, NEO is the first and only EN 54-16 certified system made in Spain.
Features
Making the difference
MORE RELIABILITY AND DURABILITY
Apart from being a certified EN 54-16 (0370-CPR-3261) system, NEO was made to last and to be highly reliable. It has high quality and durable components plus offers specific features that go way beyond the minimum requirements to obtain the certificate.
EASIER TO USE, INSTALL AND MAINTAIN.
NEO is a compact system with plug-and-play philosophy, that includes in just one equipment of 2U what normally other manufacturers require several items. NEO includes 8 amplifiers, a digital audio matrix (40x1024), line supervisor, back-up amplification, double message player with 4GB, HQ audio over Ethernet and a touch screen among other features.
EASIER TO SCALE
NEO is very easy to scale. Either locally, just by direct connection of NEO-Extension units with Ethernet cable or in a distributed way by using Ethernet switches.
MORE FLEXIBILITY AND INTEGRATION OPTIONS
NEO can be easily integrated and can communicate in an open way with third-party systems (by using UDP Ethernet commands, by RS-485 or contact closure relays).
HQ AUDIO OVER ETHERNET
NEO natively includes audio over Ethernet, it can publish its audio inputs or receive up to 32 extra audio outputs from the network of very high-quality audio (48Khz, 24 bits) in real-time without noticeable delay.
WEB-BASED CONTROL
NEO allows a web-based remote and intuitive control from the data network. Thanks to SIME software, the operator in the central control point can easily control and monitor several NEO systems.
Front Side
Easy control and supervision at your fingertips.
Rear Side
8 class D amplifiers, built-in line supervision, audio over Ethernet, advanced integration ports and more.
NEO Extensions

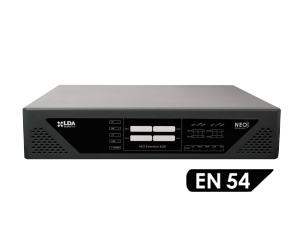

LDA NEO Extension 4250 is an extension controller and a 4x250W amplifier or 2x500W amplifier for the compact EN 54-16 PA/VA system NEO.

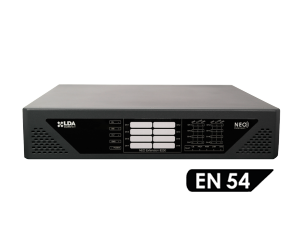

LDA NEO Extension 8250 is an extension unit for the EN 54-16 PA/VA system NEO.
LDA NEO Extension 4500 is an extension controller and a 4x500W amplifier or 2x1000W amplifier for the compact EN 54-16 PA/VA system NEO
